The high-end building material series of wollastonite fiber has the advantages of non-toxic, odorless, and non radioactive, gradually replacing asbestos, which is harmful to human health, and is a new raw material for environmentally friendly building materials in the new century. Wollastonite fibers can still maintain their unique needle like structure after special processing technology, and the impact resistance, bending strength, and wear resistance of materials such as silica calcium board and fireproof board with added wollastonite fibers are greatly improved.
TYPICAL PHYSICAL PROPERTIES /TYPICAL VALUE
Morphology – Fiber/Acicular
Appearance – White
Whiteness % 72.9
Refractive index – 1.67
Gravity – 2.79
Bulk Density(Loose) g/ml 0.48
Minus 100 U.S. Mesh Screen % 100.00
Hardness(Moh’s Scale) – 4.5-5.0
Solubility in water g/100ml 0.0095
Melting point ℃ 1540
Coefficient of expansion – 6.5×10-6
FIBER CHARACTERISTICS /TYPICAL VALUE

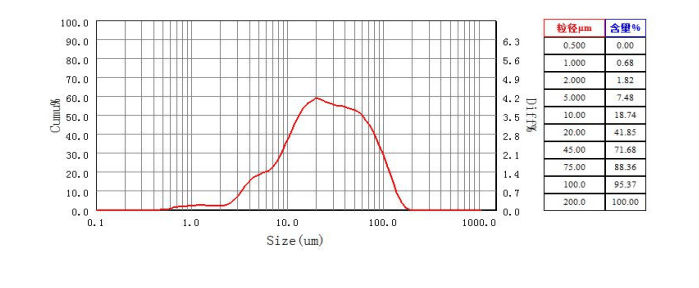

D10 Laser-diffraction Particle Size μm 8.764
D50 Laser-diffraction Particle Size μm 50.11
D90 Laser-diffraction Particle Size μm 144.3
Average Fiber Length μm 380.2
Average Fiber Diameter μm 24.4
Average Aspect Ratio(L/D) μm 16:1
CHEMICAL PROPERTIES /TYPICAL VALUE
SiO2 % 49.32
CaO % 44.54
Fe2O3 % 1.18
Al2O3 % 0.73
TiO2 % 0.01
MgO % 0.30
MnO % 0.34
Na2O % 0.06
K2O % 0.01
P2O5 % 0.01
H2O % 0.05
L.O.I % 4.29
PH VALUE(10% slurry) – 9.9
The data provided are typical characteristics of the product. Only for your information. Welcome customers to request sample and test.
